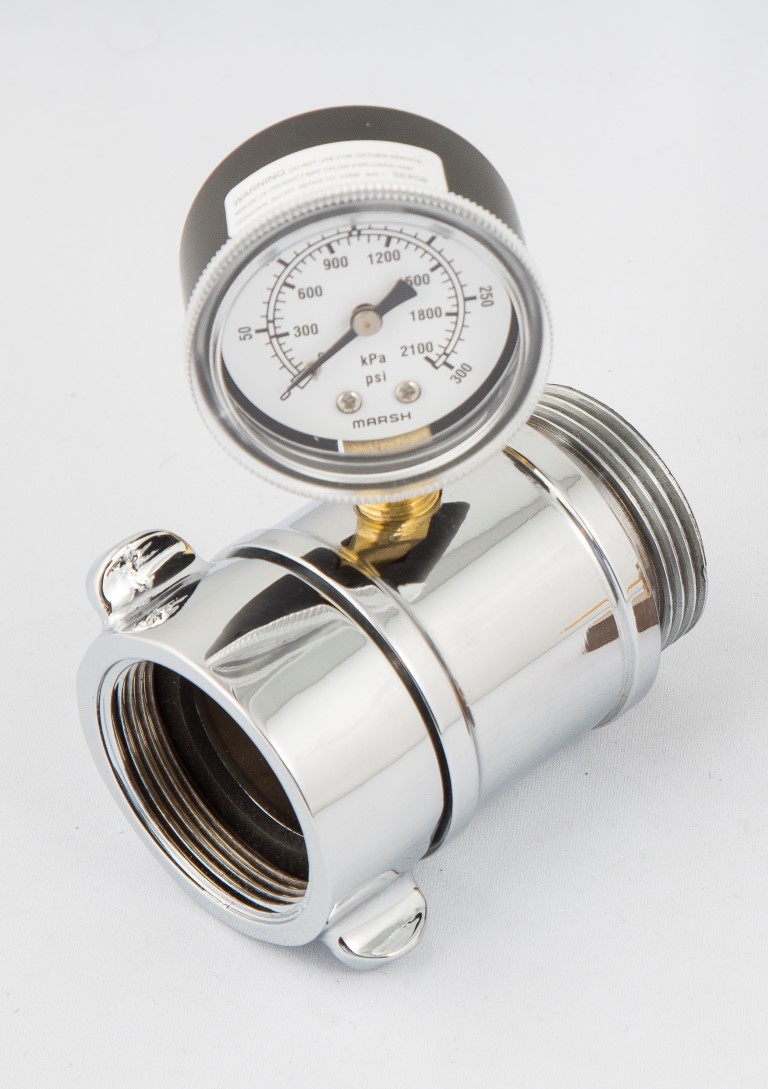

Line Gauge

HB208

Used to determine nozzle, static and flow pressure.

  • Available in 1 ½” and 2 ½”  sizes   Thread Specification of your choice
  • Complete with Pressure gauge for 1  1/2”  Size * See HB209
  • Complete with Pressure gauge for 2  1/2”  Size * See HB209
  • Size 1 1/2” weight 2 1/2 Lbs. Length 5 1/2”
  • Size 2 1/2” weight  3 Lbs. Length 6””
  • Upon request, you can buy the Line Gauge without the Pressure Gauge
  • HB208A   High Tensile Anodized Aluminum
  • HB208B   Brass
  • HB208C   Brass Chrome Plated

Mechanical dial pressure gauge, 2.5 inch (63mm) diameter dial, stainless steel case, liquid filled, dual scale 0-300 psi / 0-2100 kPa, brass wetted parts, 1/4 inch NPT, lower mount connection.

  • Glycerin filled case to reduce needle fluctuations due to vibration
  • Crimp-on bezel
  • Dual scale (psi/kPa)
  • ±1.5% of full scale value accuracy
  • Restricted orifice to dampen pressure surge
  • 5 year warranty



SKU: HB208 Category:
